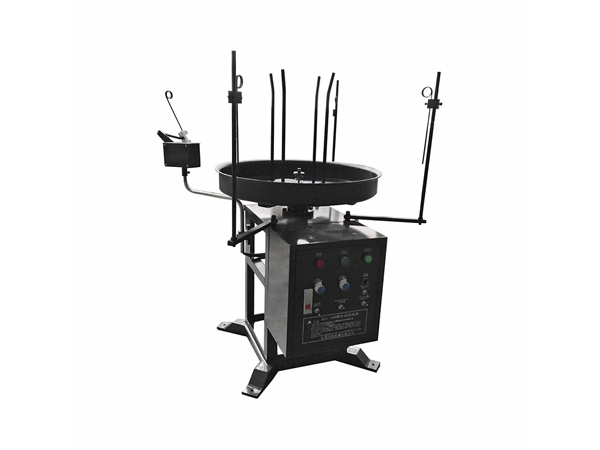

KSJ-100 automatic wire feeding machine

Description

  KSJ-100 automatic wire feeding machine, referred to as 100kg automatic wire feeding decoiler or rack, is a company dedicated to supporting the CNC spring machine in the process of forming the wire part of the design, bearing weight less than 100kg and the coil diameter less than 650mm, usually can also be used with other devices such as spring machine, straightening machine ring, machine, punching machine, screw machine, coiling machine and wire forming machine matched with.

Parameters

     機 型     Model     KSJ-100
     最大載重             Max Capacity of Load           100kg
     最大轉速     Max Speed of Table     150rpm
     圓盤直徑     Diameter of Table     650mm
     電 機     Motor     0.18kw
     電 源     Power AC     220v 50Hz
     尺 寸     Dimensions(L*W*H)     650x6500x750mm
     重 量     Weight     60kg



  Automatic wire feeding machine, also called automatic wire feeding decoiler, automatic wire feeding speed by adjusting in the process of operation, the supporting host device to maintain synchronization with the wire feeding speed automatic wire feeding shelf; when the wire, wire disconnection or after the automatic wire feeding shelf it will send the alarm signal and automatically shutdown, has the advantages of simple operation, convenient use and high work efficiency.
